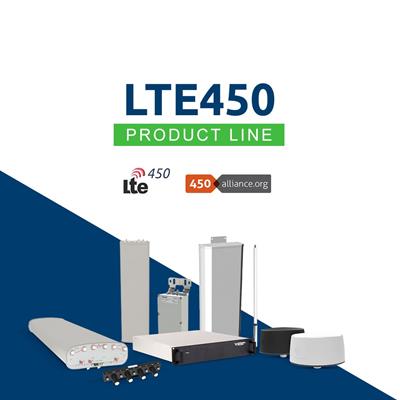

Introducing LTE 450 Network Solutions from Amphenol Procom
LTE 450 refers to LTE networks operating in the 410–470 MHz frequency range which is known for its extended coverage, strong penetration through obstacles and high reliability. It’s ideal for many industries such as public safety, utilities and mission-critical private networks in rural or remote areas.
Amphenol Procom has been supplying robust, space-saving and performance-driven
LTE450
RF solutions for some time—built to help you connect with confidence. Here are just some of our solutions
PRO-HDAR Series - Ultra-Compact Broadband Combiners
An integrated, single tray combining solution that minimises rack space (just 2 HU in a 19” rack) while delivering outstanding RF performance.
- 2 to 4-channel configurations
- Frequency ranges:
• VHF: 136–175 MHz (narrow & broadband)
• UHF/LTE: 340–470 MHz (narrow & broadband)
- 50 W per channel power handling
- High isolation: >80 dB Tx–Rx
- Low insertion loss & VSWR ≤ 1.5:1
- Built-in 115/230 VAC power supply
- Digital ready – supports ≥6.25 kHz channel spacing
- Single or dual Tx isolators fitted as standard
Tx/Rx frequencies and max Tx power per channel must be specified when ordering.
760 & 766 Series - UHF X-POL Panel Antennas
Versatile and rugged, these single and cross-polarised panel antennas are tailored for LTE450 applications, offering flexible installation and outstanding coverage.
- Full LTE 450 support: Bands 87 & 88 (410–430 MHz) and 31 & 72 (450–470 MHz)
- High gain options: 8 dBi to 15 dBi
- Multiple beamwidths: 68° to 115° for precise coverage
- Low PIM for clean, interference-free signal
- Lightweight design with low wind load
- High wind survival for harsh environments
- Flexible mounting with tilt bracket options
These two solutions are fully compatible and designed to work together providing reliable signal combining and distribution in even the most challenging LTE450 deployments.
To view more LTE450 solutions, click on the
Amphenol Procom LTE450 Catalogue.
If you have questions or want further information about the Amphenol Procom product offering for LTE450, please call our team on 01227 743099 or email
sales@antennapro.co.uk.
29/05/2025
